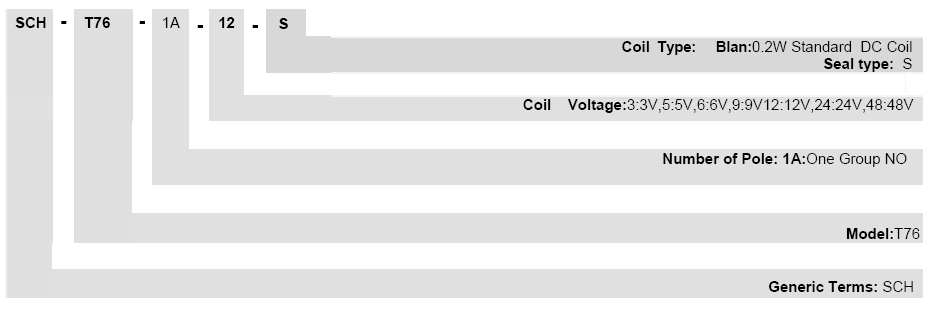

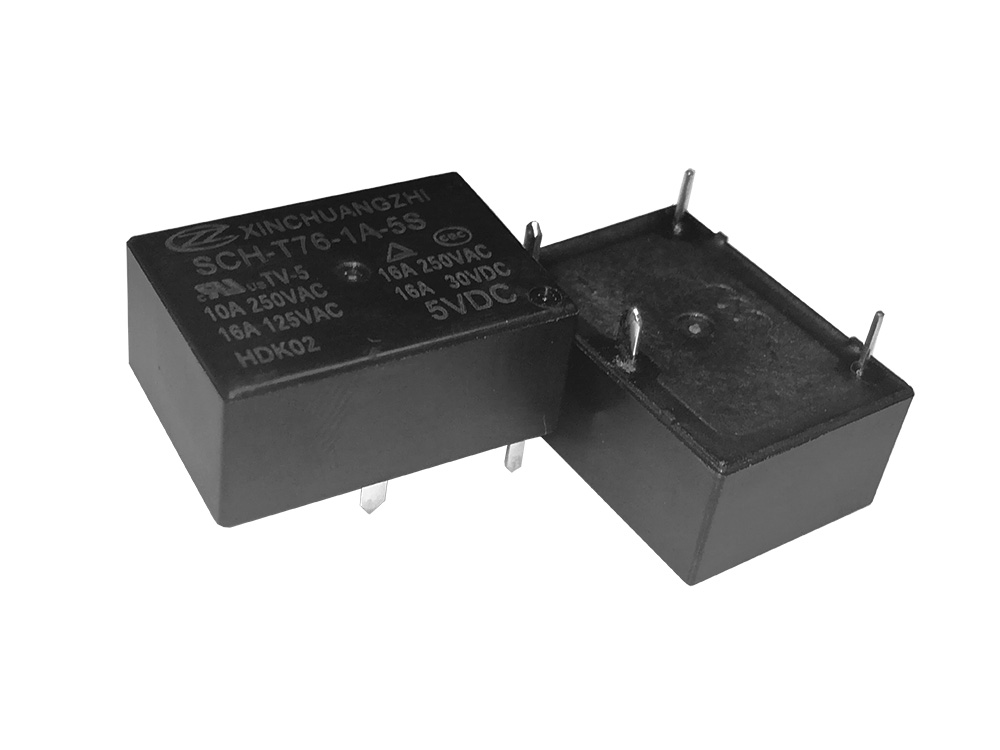

Contact data |
||||||||||
Contact Arrangement |

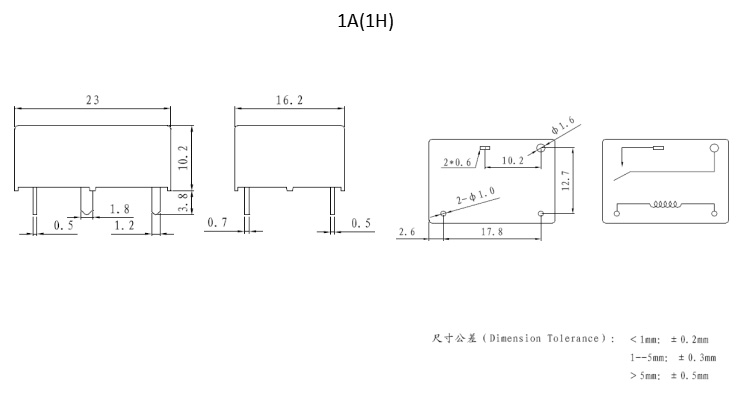

1A(1H) |
|||||||||
Contact Material |
Ag Alloys |
|||||||||
Conatct Rating(Resistive) |
16A 30VDC/16A 250VAC |
|||||||||
Max.Switching Power |
4000VA |
|||||||||
Max.Switching Voltage |
250VAC |
|||||||||
Max.Switching Current |
16A |
|||||||||
Contact Resistance |
≤100mΩ (1A24VDC) |
|||||||||
Operation Life |
Electrical |
1×10^ 5 ops |
||||||||
Mechanical |
1×10^ 7 ops |
|||||||||
Coil Parameter |
||||||||||
Rated coil power |
Standard:~ 200mW |
|||||||||
Coil voltage VDC |
Pick up Voltage VDC |
Release voltage VDC |
Max voltage VDC |
Nominal Current mA |
Coil Resistance |
Coil power consumption W |
||||
5 |
75% |
10% |
130% |
40 |
125 |
0.2 |
||||
6 |
33.3 |
180 |
0.2 |
|||||||
9 |
22.5 |
400 |
0.2 |
|||||||
12 |
16.7 |
720 |
0.2 |
|||||||
24 |
8.3 |
2880 |
0.2 |
|||||||
48 |
4.2 |
11430 |
0.2 |
Operation condition |
|
Insulation Resistance |
1000MΩ |
Dielectric Strength |
|
Between Contacts |
1000VAC |
Between Contacts and Coil |
2500VA |
Action time (rated voltage) |
≦15ms |
Release time (rated voltage) |
≦5ms |
Shock Resistance |
98m/s2 980m/s2 |
Vibration Resistance |
10Hz~55Hz 1.5mm Double amplitude 1.5mm |
Terminals Strength |
6N |
Solderability |
280±10℃ 2±1s℃ |
Ambient Temperature |
‐40~105℃ |
Relative Humidity |
5%~85% RH |
Mass |
~10g |
