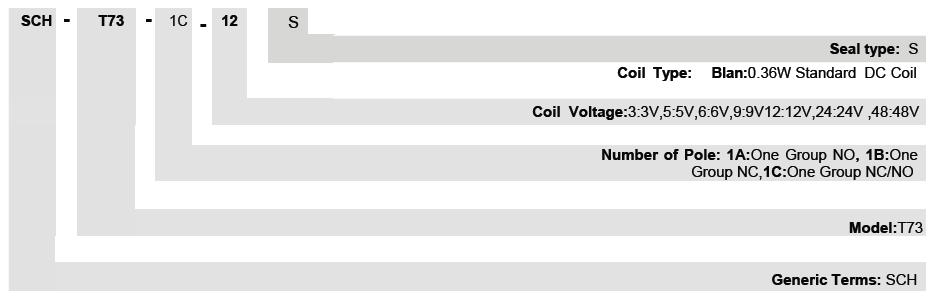

Contact data |
||||||||||||
|
Contact Arrangement |
1A(1H) |
1B(1D) |
1C(1Z) |
|||||||||
|
Contact Material |
Ag Alloys |
|||||||||||
|
Conatct Rating(Resistive) |
10A 277VAC |
10A 30VDC |
NO:10A 277VAC |
|||||||||
|
Max.Switching Power |
2770VA |
|||||||||||
|
Max.Switching Voltage |
277VAC |
|||||||||||
|
Max.Switching Current |
15A |
|||||||||||
|
Contact Resistance |
≤100mΩ （1A24VDC） |
|||||||||||
|
Operation Life |
Electrical |
1×10^ 5 ops |
||||||||||
|
Mechanical |
1×10^ 7 ops |
|||||||||||
|
Coil Parameter |
||||||||||||
|
Rated coil power |
Standard：~ 360mW |
|||||||||||
|
Coil voltage VDC |
Pick up Voltage VDC |
Release voltage VDC |
Max voltage VDC |
Nominal Current mA |
Coil Resistance |
Coil power consumption W |
||||||
|
5 |
75% |
10% |
130% |
71.4 |
70 |
0.36 |
||||||
|
6 |
60 |
100 |
0.36 |
|||||||||
|
9 |
40 |
225 |
0.36 |
|||||||||
|
12 |
30 |
400 |
0.36 |
|||||||||
|
24 |
15 |
1600 |
0.36 |
|||||||||
|
36 |
10 |
3600 |
0.36 |
|||||||||
|
48 |
7.5 |
6400 |
0.36 |
|||||||||
|
Operation condition |
|
|
Insulation Resistance |
1000MΩ |
|
Dielectric Strength |
|
|
Between Contacts |
1000VAC |
|
Between Contacts and Coil |
1500VA |
|
Action time (rated voltage) |
≦15ms |
|
Release time (rated voltage) |
≦5ms |
|
Shock Resistance |
98m/s2 980m/s2 |
|
Vibration Resistance |
10Hz~55Hz 1.5mm Double amplitude 1.5mm |
|
Terminals Strength |
6N |
|
Solderability |
280±10℃ 2±1s℃ |
|
Ambient Temperature |
‐40~105℃ |
|
Relative Humidity |
5%~85% RH |
|
Mass |
~ 9g |
