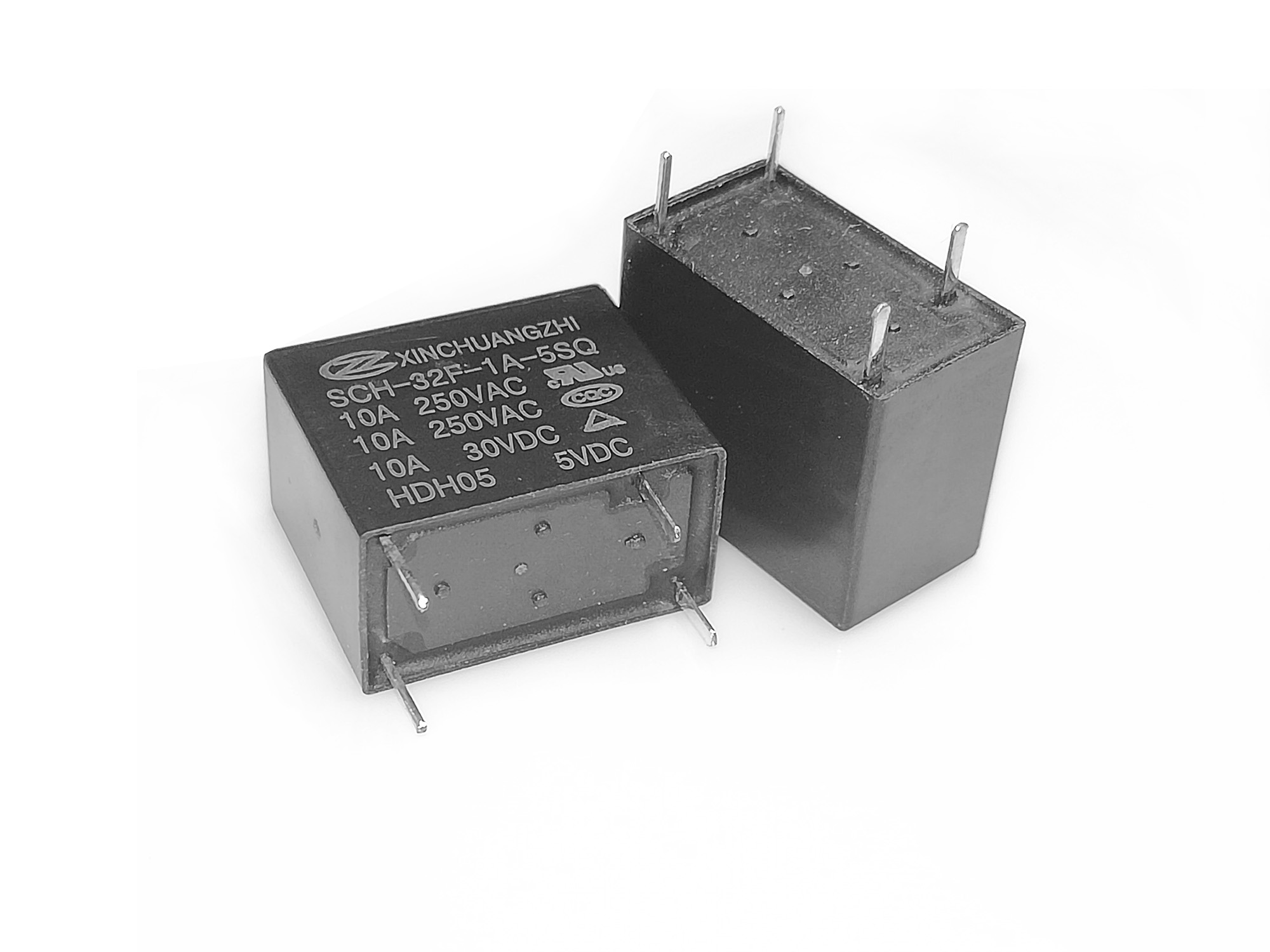

SCH‐32F‐SQ

ELECTROMAGNETIC RELAY

FEATURES

1.10A switching capability
2.possess 250VAC
3.Dlelectric strength 4000VA.(between coil and contacts)
4.1Form A configurations available
5.Wash tight and flux proofed types available
6.Thermal class F
7.Environmental friendly product(18.5x 10.5x 15


DOWNLOAD PDF
  • Description

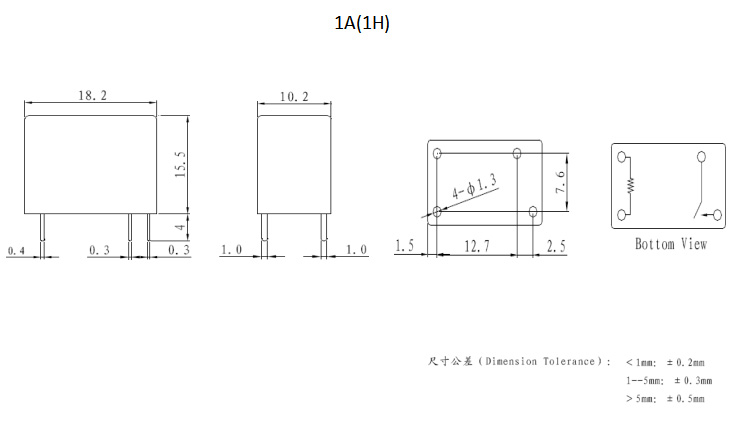

  • Overall dimension

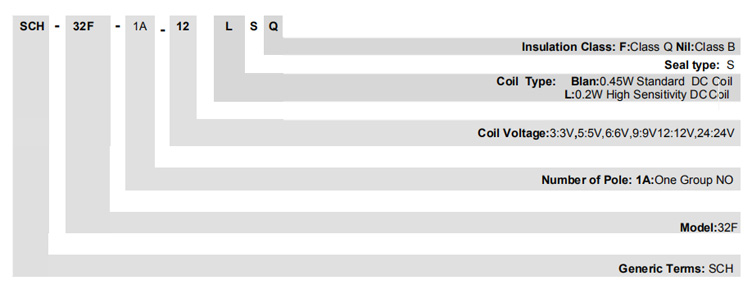

  • Ordering Information

    Contact data

    Contact Arrangement

    1A(1H)

    Contact Material

    Ag Alloys

    Conatct Rating(Resistive)

    10A 30VDC/10A 250VAC

    Max.Switching Power

    2500VA

    Max.Switching Voltage

    250VAC

    Max.Switching Current

    10A

    Contact Resistance

    ≤100mΩ (1A24VDC)

    Operation Life

    Electrical

    1×105ops

    Mechanical

    1×107ops



    Coil Parameter

    Rated coil power

    Standard:450mW

    Coil voltage VDC

    Pick up Voltage VDC

    Release voltage VDC

    Max voltage VDC

    Nominal Current mA

    Coil Resistance
    (1±10%)

    Coil power consumption W

    5

    75%
    Maximum

    10%
    Minimum

    130%

    91

    55

    0.45

    6

    75

    80

    0.45

    9

    50

    180

    0.45

    12

    37.5

    320

    0.45

    24

    18.8

    1280

    0.45

    Operation condition

    Insulation Resistance

    1000MΩ

    Dielectric Strength



    Between Contacts

    1000VAC

    Between Contacts and Coil

    2500/4000VA

    Action time (rated voltage)

    ≦15ms

    Release time (rated voltage)

    ≦5ms

    Shock Resistance

    98m/s2 980m/s2

    Vibration Resistance

    10Hz~55Hz 1.5mm Double amplitude 1.5mm

    Terminals Strength

    6N

    Solderability

    280±10℃ 2±1s℃

    Ambient Temperature

    ‐40~85℃

    Relative Humidity

    5%~85% RH

    Mass

    ~ 7g



×
