SCH‐14FH

ELECTROMAGNETIC RELAY

FEATURES

1.16A switching capability
2.possess 250VAC
3.Dlelectric strength 5kv.(between coil and contacts)
4.1Form C &1Form A configurations available
5.Wash tight and flux proofed types available
6.Thermal class F
7.Environmental friendly product(RoHS )


DOWNLOAD PDF
  • Description

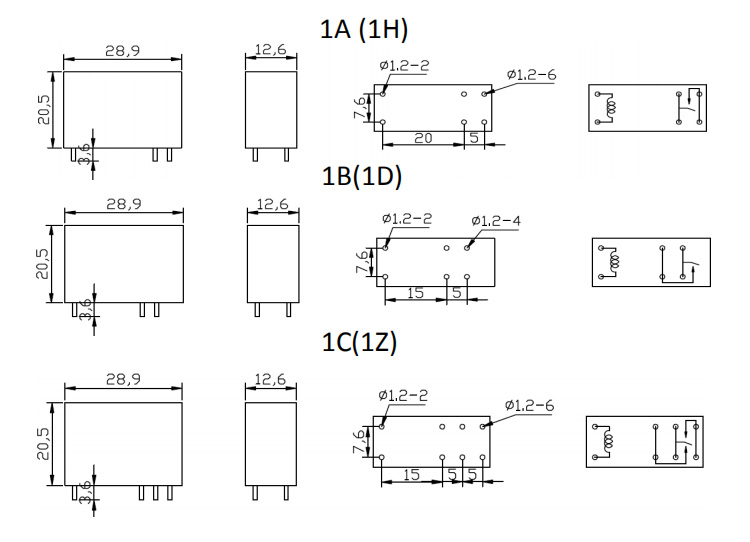

  • Overall dimension

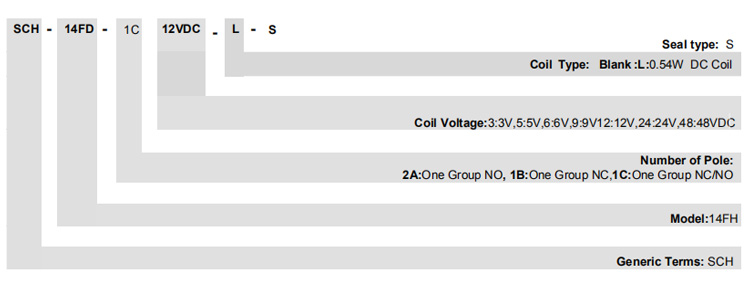

  • Ordering Information

    Contact data

    Contact Arrangement

    1A(1H)

    1B(1D)

    1C(1Z)

    Contact Material

    A g  Alloys

    Conatct Rating(Resistive)

    16A/250VAC/28VDC

    16A/250VAC/28VDC

    NO:16A NC:10A

    Max.Switching Power

    4000VA

    Max.Switching Voltage

    250VAC

    Max.Switching Current

    16A

    Contact Resistance

    ≤100mΩ(1A24VDC)

    Operation Life

    Electrical

    1×105ops

    Mechanical

    1×107ops

    Coil Parameter

    Rated coil power

    Sensitive: 540mW Standard: 720mW

    Sensitive type

    Coil voltage
    VDC

    Pick up Voltage VDC

    Release voltage VDC

    Max voltage VDC

    Nominal Current
    (mA)

    Coil Resistance (1±10%)

    Coil power consumption W

    5

    75%
    Maximum

    10%
    Minimum

    130%

    108

    46

    0.54

    6

    88

    68

    0.54

    9

    60

    150

    0.54

    12

    44

    268

    0.54

    24

    22

    1068

    0.54

    36

    15

    2400

    0.54

    48

    12

    4268

    0.54

    Coil Parameter

    Standard type

    Coil voltage VDC


    Pick up Voltage VDC

    Release voltage VDC

    Max voltage VDC

    Nominal Current
    (mA)

    Coil Resistance (1±10%)

    Coil power consumptio
    n W

    5

    75%
    Maximum

    10%
    Minimum

    130%

    143

    35

    0.72

    6

    120

    50

    0.72

    9

    78

    115

    0.72

    12

    60

    200

    0.72

    24

    30

    800

    0.72

    36

    20

    1800

    0.72

    48

    15

    3200

    0.72

    Operation condition

    Insulation Resistance

    1000MΩ

    Between Contacts

    1000VAC

    Between Contacts and Coil

    5000 VAC

    Action time (rated voltage)

    ≦15ms

    Release time (rated voltage)

    ≦5ms

    Shock Resistance

    98m/s2 980m/s2

    Vibration Resistance

    10Hz~55Hz 1.5mm 、 Double amplitude 1.5mm

    Terminals Strength

    6N

    Solderability

    280±10℃

    2±1s℃

    Ambient Temperature

    ‐40~85℃

    Relative Humidity

    5%~85% RH

    Mass

    ~ 13 g



×
