SCH‐14FD(5A)

POWER RELAY

FEATURES

1.5A switching
2.possess 250VAC, CQC TUV
3. Dlelectric strength 5kv.(between coil and contacts)
4.2Form C DPDT&2Form A SPDT configurations available
5.Wash tight and flux proofed types available
6.Thermal class F
7.Environmental friendly product(R


DOWNLOAD PDF
  • Description

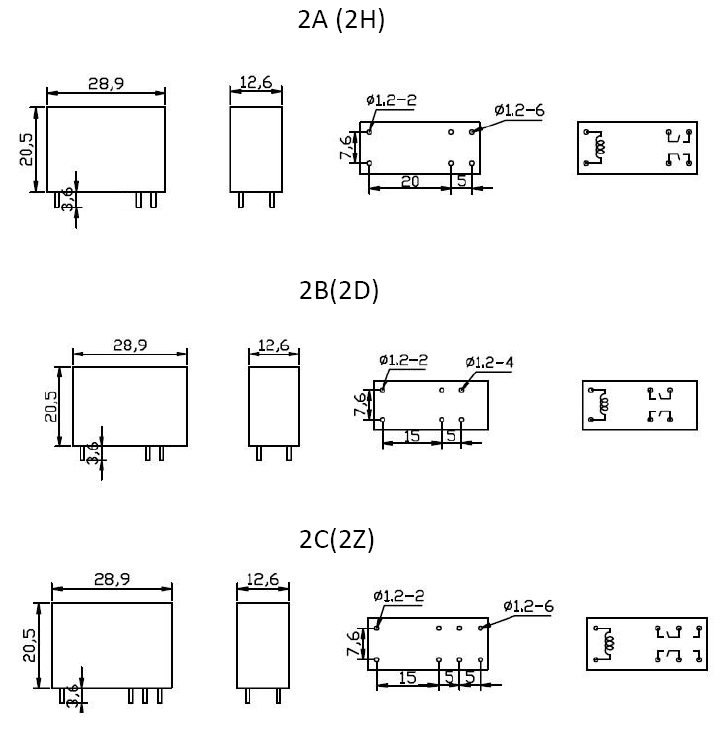

  • Overall dimension

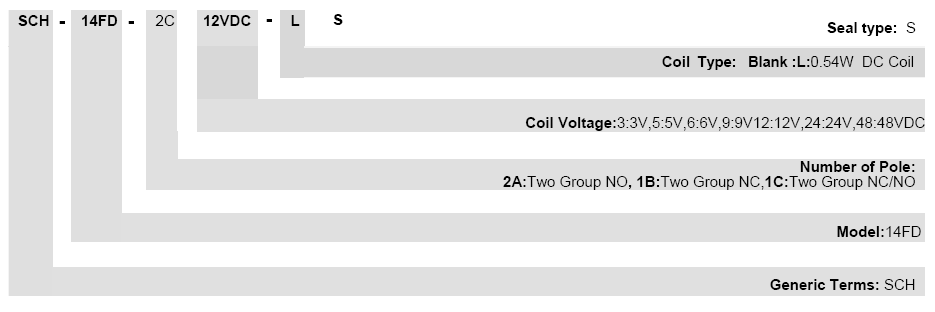

  • Ordering Information

    Contact data

    Contact Arrangement

    2A(2H)

    2B(2D)

    2C(2Z)

    Contact Material

    Ag  Alloys

    Conatct Rating(Resistive)

    5A 250VAC/28VDC

    5A 250VAC/28VDC

    NO:5A NC:5A

    Max.Switching Power

    1250VA

    Max.Switching Voltage

    250VAC

    Max.Switching Current

    5 A

    Contact Resistance

    ≤100mΩ(1A 24VDC)

    Operation Life

    Electrical

    1×10^5 ops

    Mechanical

    1×10^7 ops

    Coil Parameter

    Rated coil power

    Sensitive type:540mW Standard type: 720mW

    Sensitive type

    Coil voltage VDC

    Pick up Voltage VDC

    Release voltage VDC

    Max voltage VDC


    Nominal Current
    (mA)

    Coil Resistance (1±10%)

    Coil power consumption W

    5

    75%
    Maximum

    10%
    Minimum

    130%

    108

    46

    0.54

    6

    88

    68

    0.54

    9

    60

    150

    0.54

    12

    44

    268

    0.54

    24

    22

    1068

    0.54

    36

    15

    2400

    0.54

    48

    12

    4268

    0.54

    Coil Parameter

    Standard type



    Coil voltage
    VDC


    Pick up Voltage VDC

    Release voltage VDC

    Max voltage VDC

    Nominal Current
    (mA)



    CoilResistance
    (1±10%)



    Coil power consumptio n W

    5





    75%
    Maximum





    10%
    Minimum





    130%

    143

    35

    0.72

    6

    120

    50

    0.72

    9

    78

    115

    0.72

    12

    60

    200

    0.72

    24

    30

    800

    0.72

    36

    20

    1800

    0.72

    48

    15

    3200

    0.72

    Operation condition

    Insulation Resistance

    1000MΩ

    Between Contacts

    1000VAC

    Between Contacts and Coil

    5000 VAC

    ction time (rated voltage)

    ≦15ms

    elease time (rated voltage)

    ≦5ms

    Shock Resistance

    98m/s2 980m/s2

    Vibration Resistance

    10Hz~55Hz 1.5mm   Double amplitude 1.5mm

    Terminals Strength

    6N

    Solderability

    280±10℃

    2±1s℃

    Ambient Temperature

    ‐40~85℃

    Relative Humidity

    5%~85% RH

    Mass

    13.0g




×
